| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | M12x1.5~M75x2 / PG7~PG48 |
| Minimum Order Quantity: | 100 units |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 1000000 pieces / month |
| Material: | NBR, EPDM, Viton For Sealing Parts | Standard Colors: | Metallic Silver |
|---|---|---|---|
| Protection Level: | IP68 (when The Cable Diameter Is Within The Clampinr Range And Assemble The Washer) | Thread System: | PG Thread (according To DIN40430) & Metric Thread (according To EN60423) |
| Quality Grade: | High Quality (6-12 Years Of Long Life For Indoor Application) | Main Advantages: | Weather Resistant & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabili |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

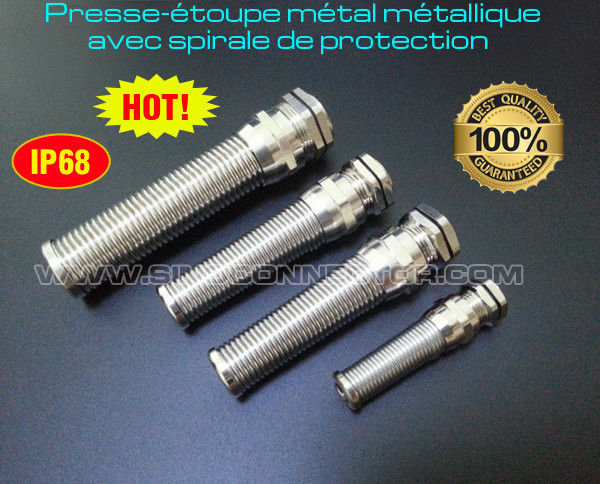

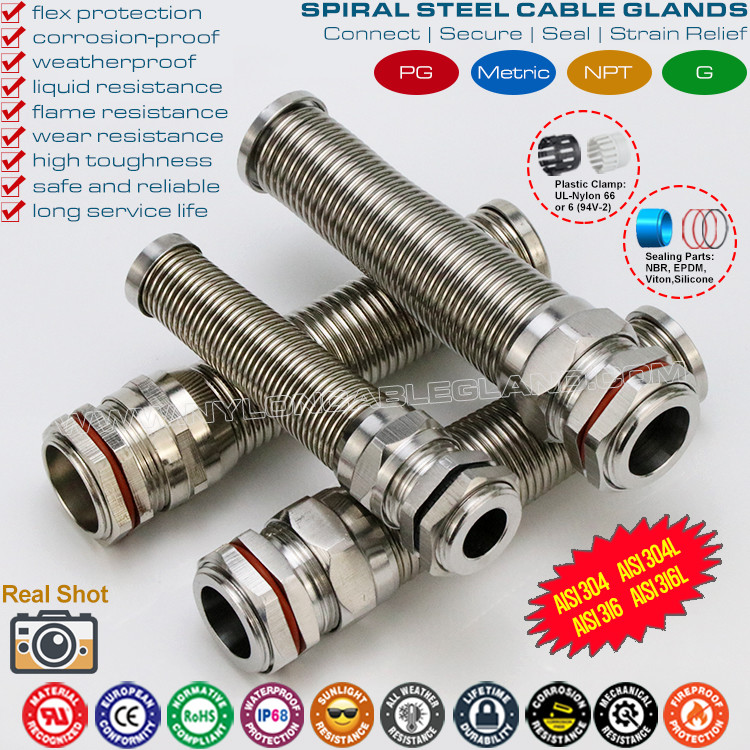

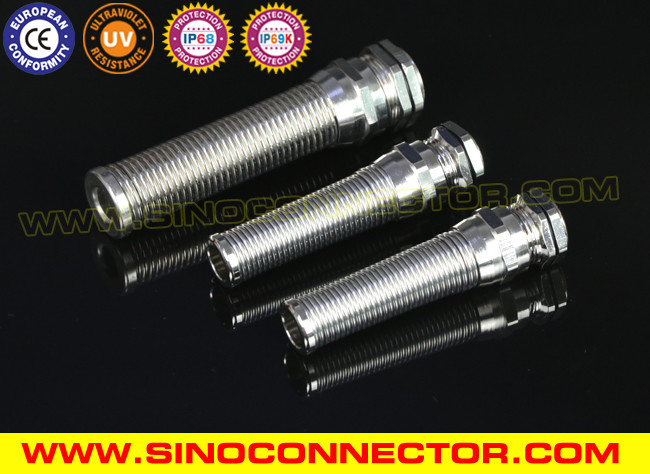

| Product name: | Brass Waterproof IP68 Wire Cable Glands Watertight Cable Joints Connectors with Bending Protection |
| Sizes available: | PG7, PG9, PG11, PG13. 5, PG16, PG21 M12x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M28x1.5, M30x1.5 |

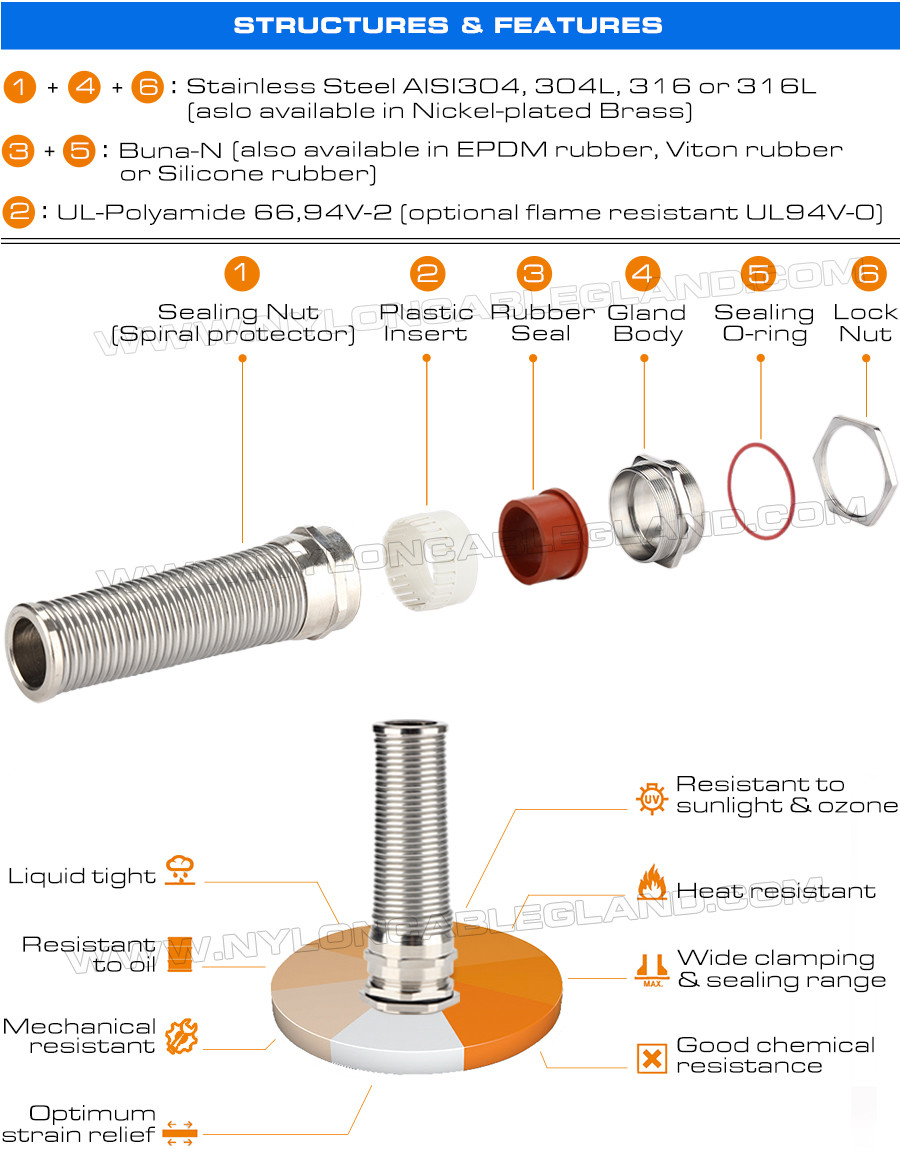

| Raw material: | Nickel-plated Brass for Locknut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| Stainless Steel 1.4310 / ASTM301 / SUS301 for Sealing Nut (Spiral Protector) | |
| NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Metallic color |

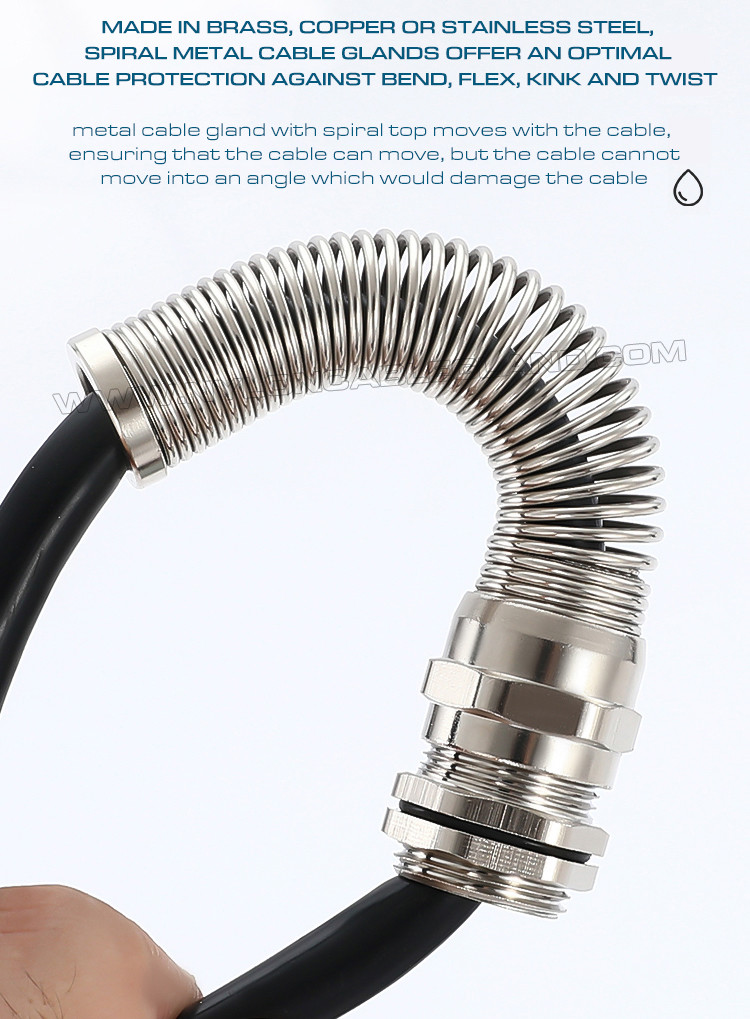

| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and protect cables from excessive bending and twisted to reduce the risk of failure. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: | PG: According to Germany standard DIN40430 & Metric: according to the standard EN60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 1,000,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 50 pieces / bag, 50pieces /color box, special packing can be customized as requested |
