| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | PG & Metric Series |
| Minimum Order Quantity: | 200 pieces |
| Price: | at the most very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 8-10 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 2000000 pieces / month |
| Material: | Brass Or Copper | Plastic Insert: | UL-certified PA6, 94V-2 |
|---|---|---|---|
| Seal & O-ring: | NBR, EPDM, Viton, Silicone Rubber | Surface: | Nickel Plating |
| Color: | Metallic Silver | IP Protection: | IP68 |
| Advantage: | Provide An Extra Resistance To Pull-out And Stron Strain Relief |
Founded in 2005, we are one of the most professional manufacturer of cable accessories in China.
Currently we manufacture and export plastic cable joint, brass cable connector, stainless steel cable gland, flexible tube, pipe fitting, plastic cable tie, stainless steel cable strap, cable clip, etc.
With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!
Descriptions:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | EMC (RFI) Cable Glands Metric and PG Nickel-Plated Brass IP68 with Additional Strain Relief Clamp |
| Sizes available: | * PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48. * M12, M14, M16, M18, M20, M22, M24, M25, M27, M30, M32, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M64. |
| Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (also available in weatherproof EPDM rubber or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |

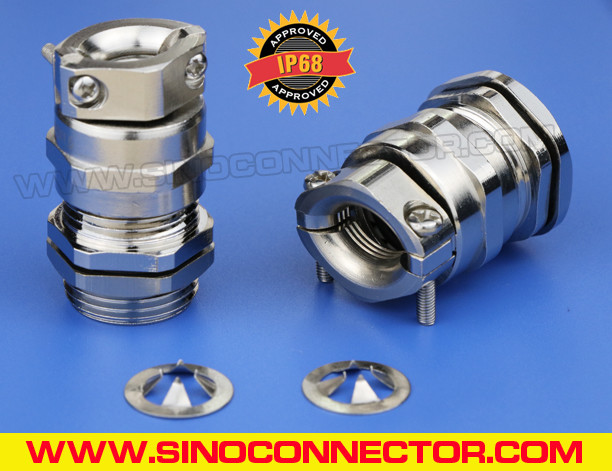

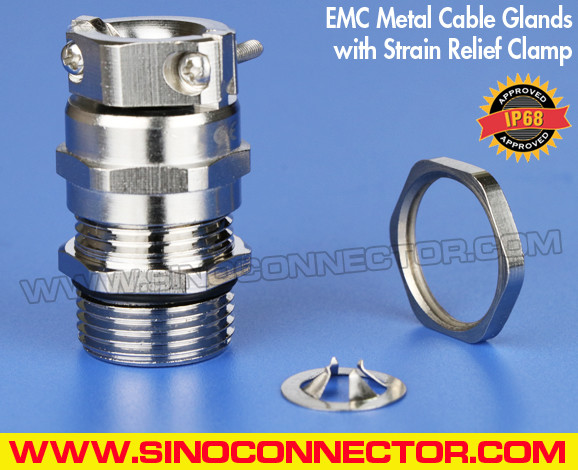

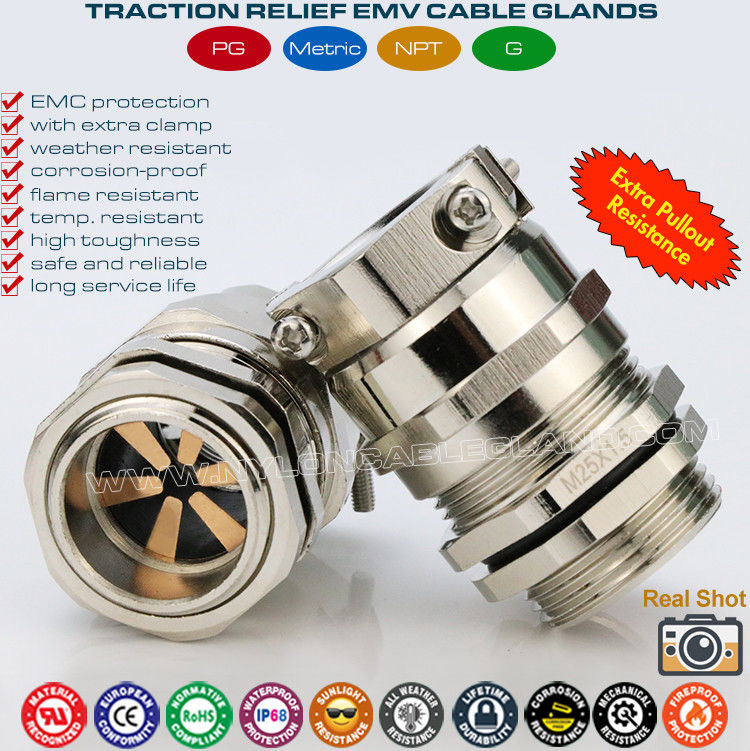

Product pictures:
