| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | PG & Metric Series |
| Minimum Order Quantity: | 500 units |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | Normal packing: 100pcs per polybag ~ 5pcs per polybag (special packing is available on request) |
| Delivery Time: | normally 8-10 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 3000000pcs / month |
| Material: | NBR, EPDM, SILICONE, Viton For Sealing Parts | Size: | All Sizes Of PG & Metric Type |
|---|---|---|---|
| Protection Level: | IP68 | Color: | Metallic Silver |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

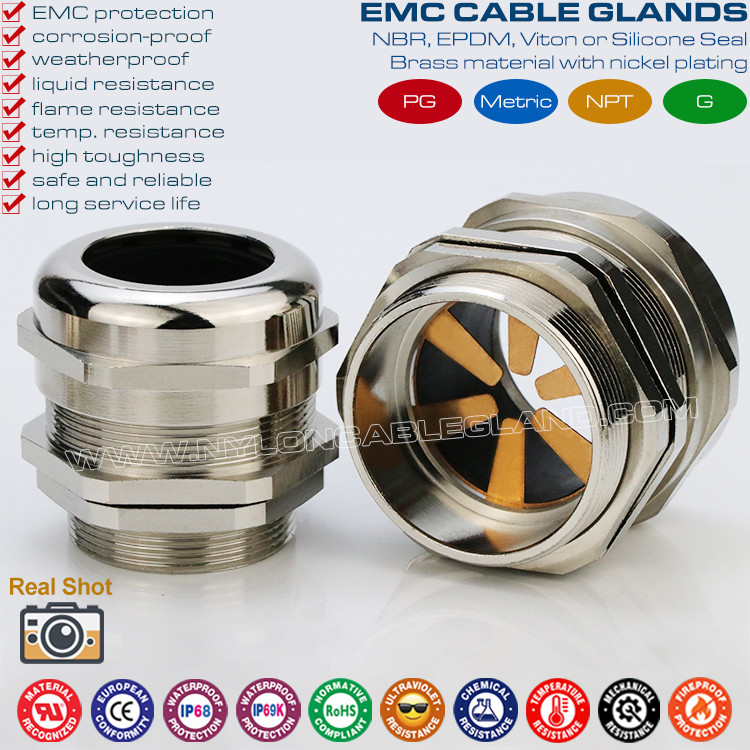

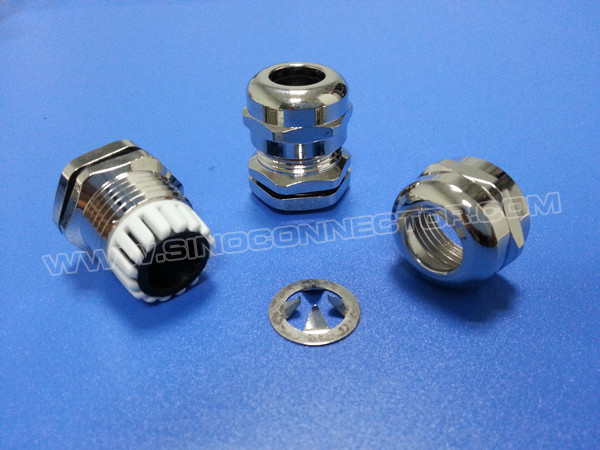

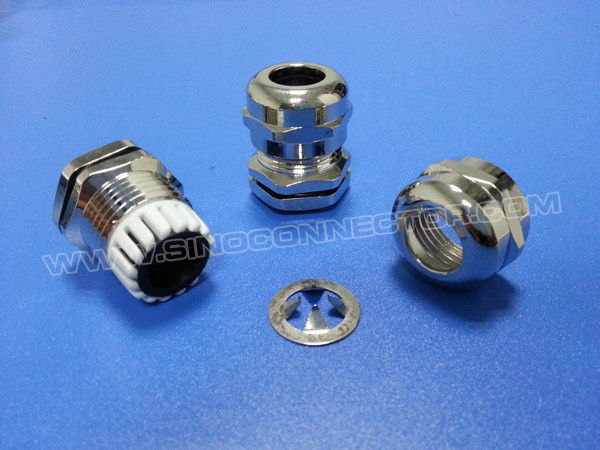

| Product name: | Cable Glands Brass EMV (EMI, EMC) Metric & PG Thread Hermetic IP68 for Anti-electromagnetic Interference |
| Sizes available: |
* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48. * M12, M14, M16, M18, M20, M22, M24, M25, M27, M28, M30, M32, M33, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M64. |

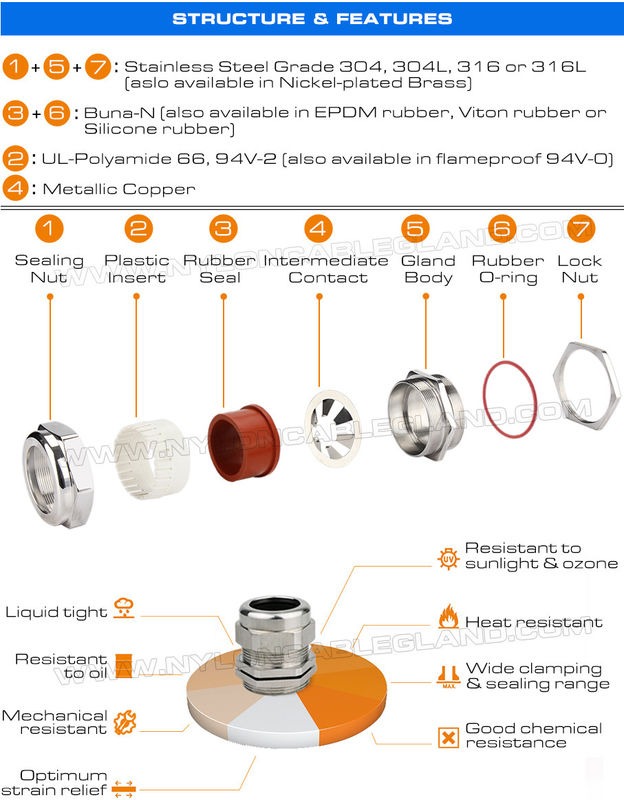

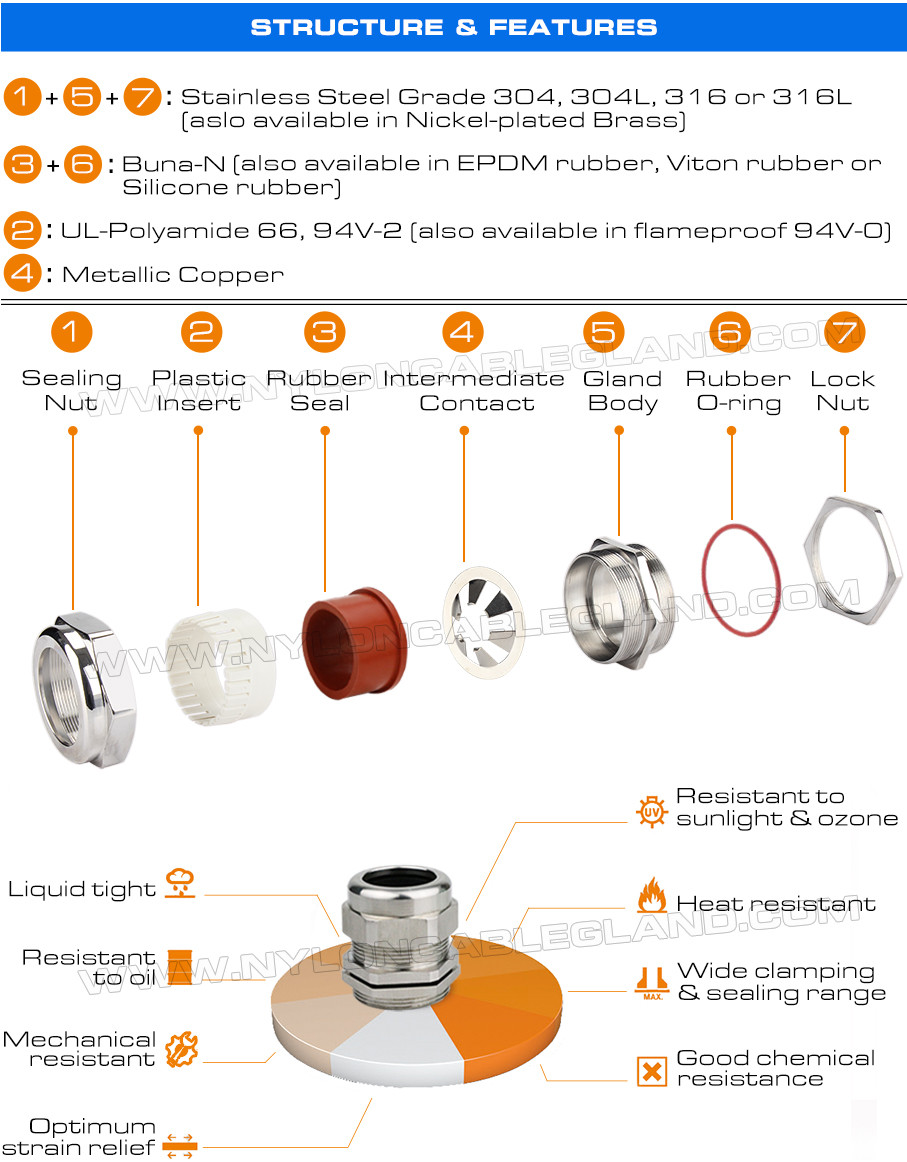

| Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Metallic color |
| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and can provide continuous EMC protection. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: | PG: According to Germany standard DIN40430 & Metric: according to the standard EN60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
