| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Factory or OEM |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | M100x2.0 |
| Minimum Order Quantity: | 100 pieces |
| Price: | the lowest prices from direct factory |
| Packaging Details: | standard packaging: 2 pieces per bag, special packaging can be available on request |
| Delivery Time: | 8-10 days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100,000 pieces per month |
| Features: | Anti-aging, Insulation, Anti-corrosion, Anti-acid, Waterproof, Etc | Material: | Stainless Steel Inox 304/316/316L |
|---|---|---|---|
| Sealing Ring: | NBR, EPDM, Silicone, FKM | Plastic Insert: | UL-Polyamide 6, 94V-2 |
| Color: | Silver | Thread: | Metric Thread (EN 60423) |
| Protection: | IP68 (assemble The O-ring On The Groove) | Function: | For Electrical Installation |
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Size: |

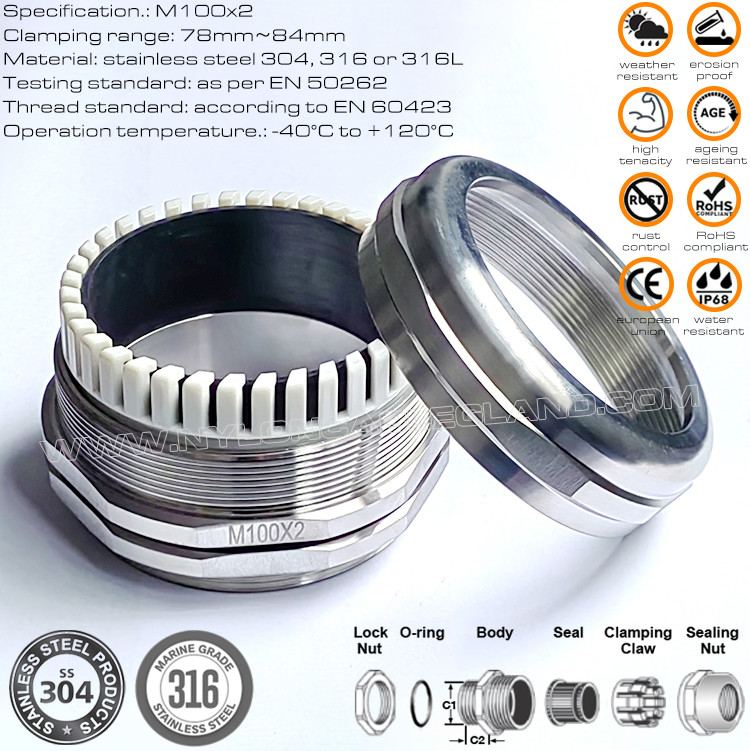

M100x2 (clamping range: 78~84mm) |
| Material: | Metallic parts are made in 304, 316 or 316L grade stainless steel |
| Plastic clamping claw is made in UL-polyamide 6, 94V-2 | |
| Sealing rings are made in NBR, EPDM, Silicone or FKM | |
| Surface: | Polishing threatment |
| Color: | Silver tone |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproof rating: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | 15mm long, but other lengths can be customized |
| Thread type: | According to the standard EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 100,000 pieces per month |
| Minimum quantity: | 100 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 2 pieces per bag. (2) special packaging can be customized as requested |
