| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Certification: | CE, ROHS, REACH, HF, IP68 |
| Model Number: | SNCG-P11S-10 |
| Minimum Order Quantity: | 1000 units |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 2000000 units / month |
| Plastic Parts: | UL-approved Polyamide 6, 94V-2 (V-0 Is Optional) | Sealing Parts: | NBR, EPDM, Viton, Silicone |
|---|---|---|---|
| Color: | Gray Or Black | Size: | PG11 (5-10mm) |
| Protection Level: | IP68 (when The Cable Diameter Is Within The Clamping Range And Assemble The O-ring) | Function: | Protect Cables Against Sharp Bending Or Breakage |
| Brand name: | Factory or OEM |
| Place of origin: | Zhejiang, China |

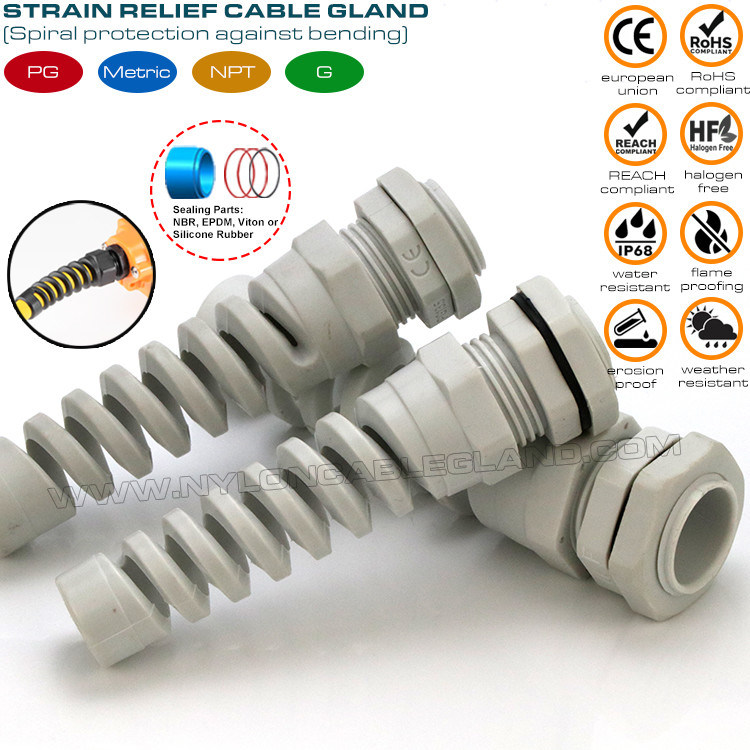

| Product name: | Spiral Cable Gland / Spiral Flexible Strain Relief Connector Nylon (Polyamide) 6 PG11 IP68 for 5-10mm Cable |
| Size: |
PG11 (5-10mm) |
| Materials: | UL-certified polyamide 6, flammability V-2 for plastic parts |
| EPDM rubber for seal rings | |
| Colors: | Grey RAL7035 or black RAL9005 |
| Advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong bend relief protection |
| Certifications: | CE, ROHS, REACH, HF, IP68 |
| Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Short thread or long thread |
| Thread standard: |
According to Germany standard DIN 40430 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: |
8-12 years of service life for indoor applications at least 5 years of service life for outdoor applications |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples are available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: |
100 pieces per bag, 100 pieces per box, special packing can be customized as requested |
