| Place of Origin: | China |
|---|---|
| Brand Name: | Factory or OEM |
| Certification: | CE, ROHS, REACH |
| Model Number: | FTQC |
| Minimum Order Quantity: | 300 pieces |
| Price: | competitive prices from direct factory |
| Packaging Details: | Standard export packaging and export cartons |
| Delivery Time: | 8-10 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000000 pieces per month |
| Features: | Resistant To Wear, Water, Corrosion & Aging, Durable, Good Insulation | Material: | UL-approved Polyamide 6, 94V-2 |
|---|---|---|---|
| Color: | Black RAL9005, Other Colors Can Be Available On Request | Female Thread: | PG Or Metric Thread |
| Model: | FTQC Series | Style: | Straight Type |
| Usage: | Designed To Connect Flexible Tubes And Cable Glands |
Description:
It is different from general type in female thread and is mainly used to connect plastic flexible conduit with other products.

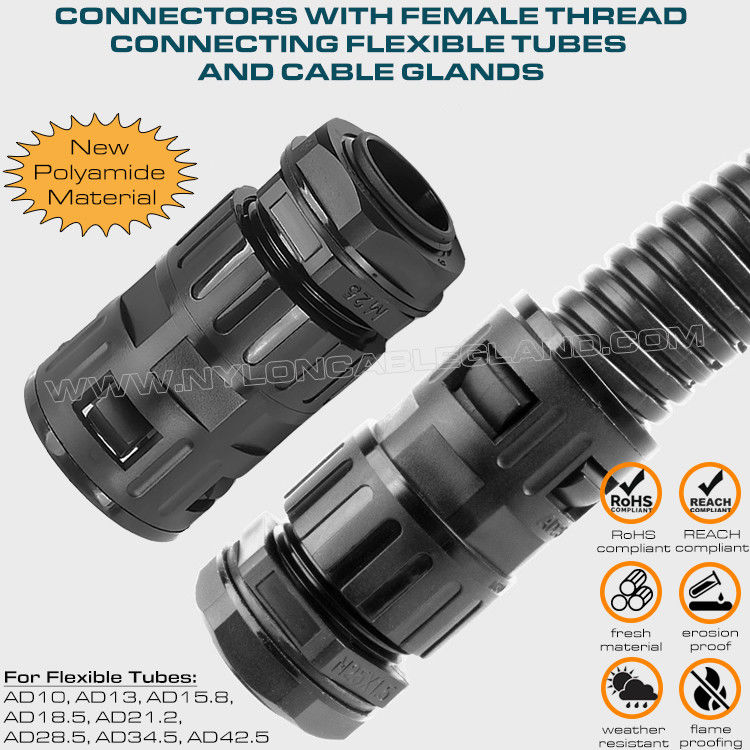

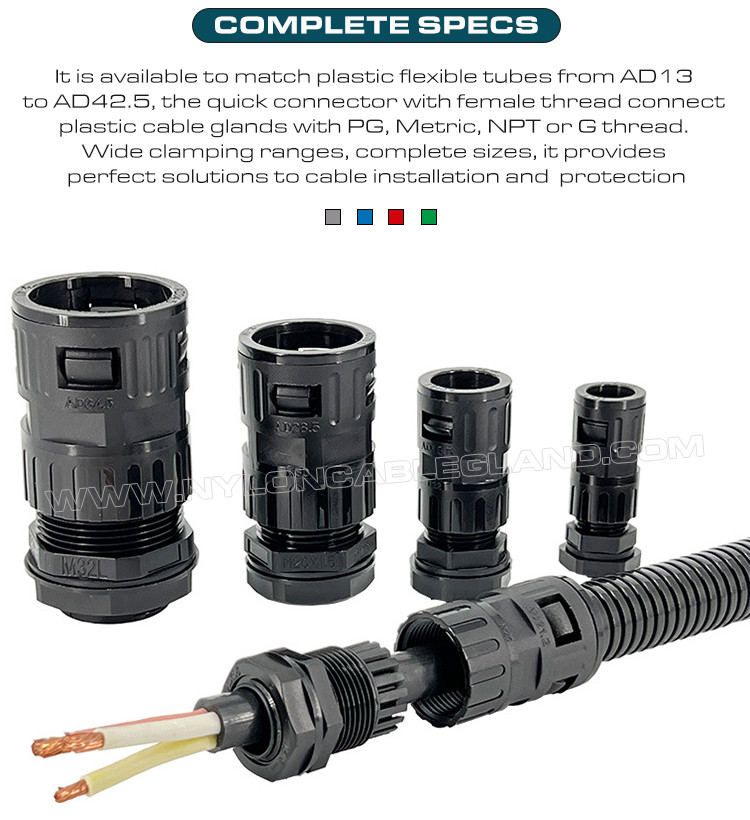

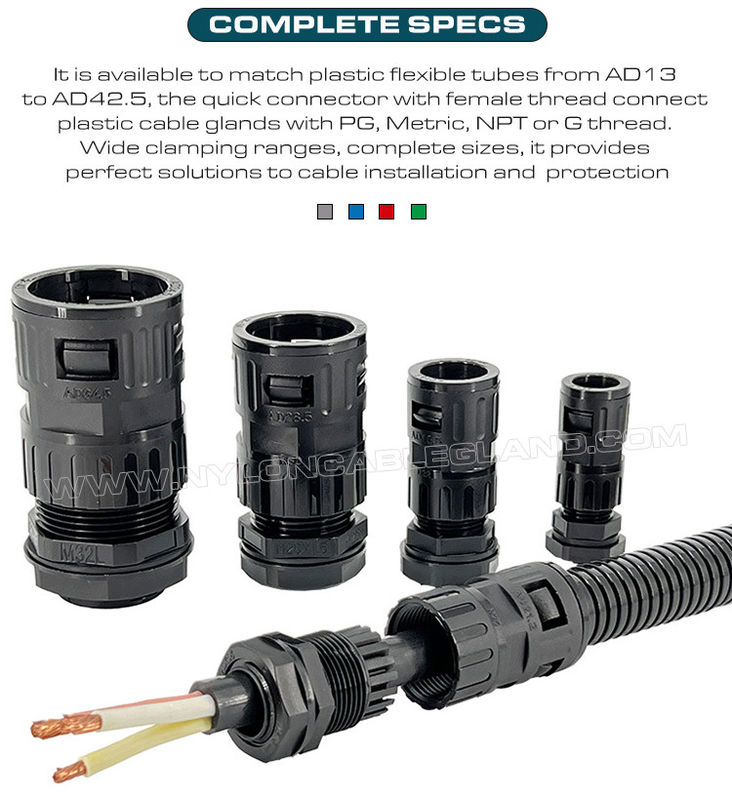

These straight connectors with internal thread are used to butt corrugated conduits and cable glands, they are mostly available in PG & Metric configuration. This connector can be regarded as a coupling to connect different items on both ends, one end accommodates plastic flexible tubes from AD10 to AD54.5, another end fits full ranges of plastic cable glands with PG, Metric, NPT or G thread, the cables fixed by cable glands on the distribution boxes can be well protected by flexible tubes against friction and wear and avoid damage to cables.
It is widely used in wire and cable protection industry.
About the item:

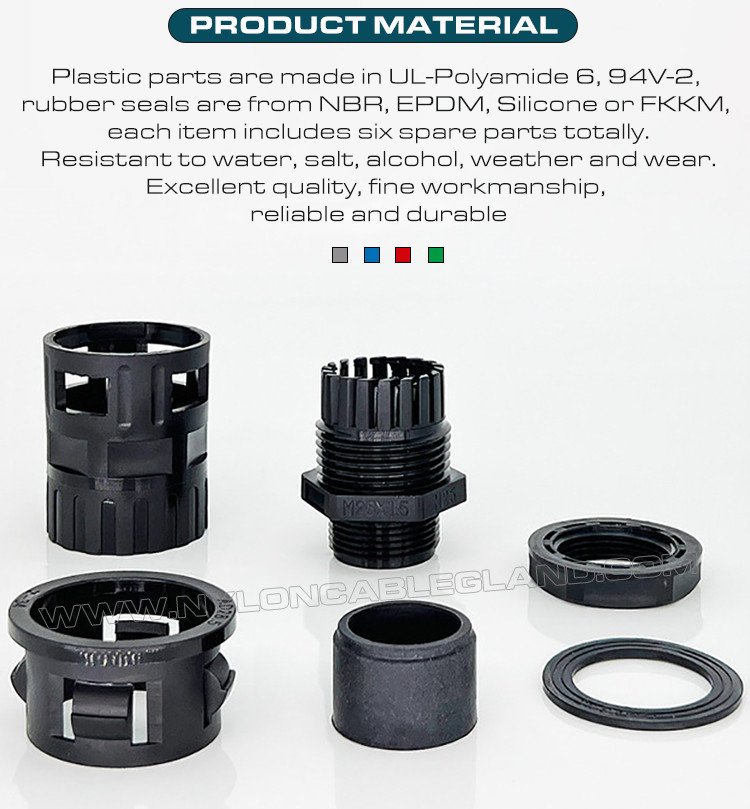

Material - Made from high-density environmentally friendly polyamide 6 material with high technology, bright surface, high toughness, strong, durable, pressure-resistant and practical.
Good Features - Flame retardant, wear-resistant, heat-resistant, cold-resistant, corrosion-resistant, resistant to gasoline, engine oil and other harmful chemicals.

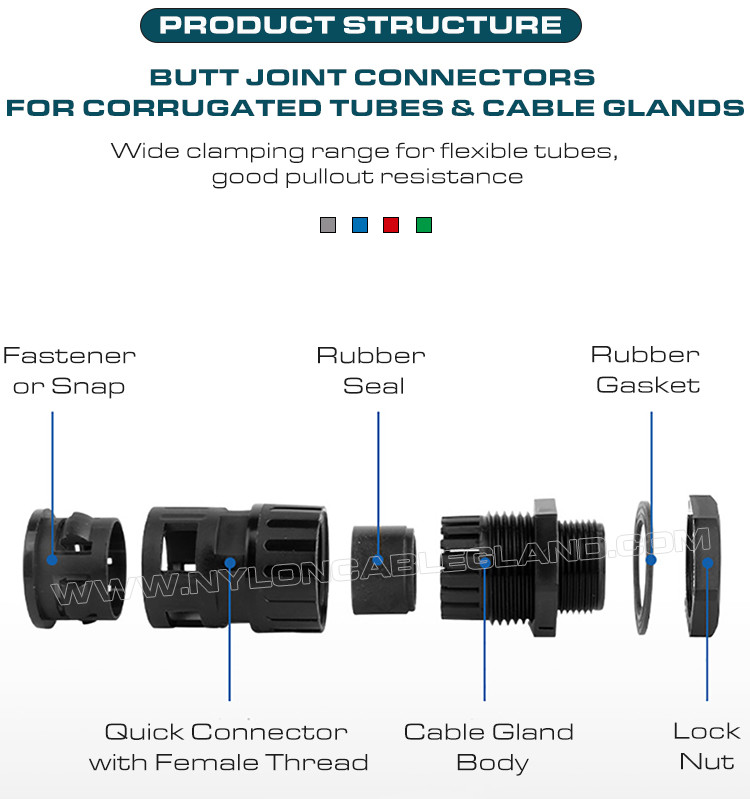

Unique Design - The unique design preventing falling off facilitates quick installation, just insert the tube directly into the connector to hold it securely in place and not easy to fall off. One-piece molded connector with female thread has an ideal interconnection of cable glands and flexible tubes.
Temperature Ranges - Normal: -30 to 80 degrees Celsius; Short-term: -40 to 110 degrees Celsius.
Multiple Sizes and Colors - A full range of models are available in black, other colors can also be customized according to customer requirements.
Wide Applications - Suitable for managing and protecting various cables in industrial applications and wires, automobiles, ships, communications, machines, equipment, rail transit and other fields.
Information:
| Brand name: | OEM or factory |
| Place of origin: | Zhejiang, China |
| Product name: | Internally Threaded Straight Connectors (Tube Connectors) Nylon 6 Black Connecting Flexible Tubes AD10~AD42.5 & Metric/PG Cable Glands for Cable Protection |
| Sizes: | FTQC series |
| Material: | UL-polyamide 6, |
| Flammability 94V-2 | |
| Color: | Black RAL9005 (special colors can be customized according to customer's request) |
| Certificates: | CE, ROHS, REACH |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 300 pieces |
| Samples available: | Free samples are available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | Shipment by EMS / TNT / DHL / UPS / FEDEX, shipment by sea or by air |
| Export packing: | 100 pieces per bag, special packing can be available as requested |
